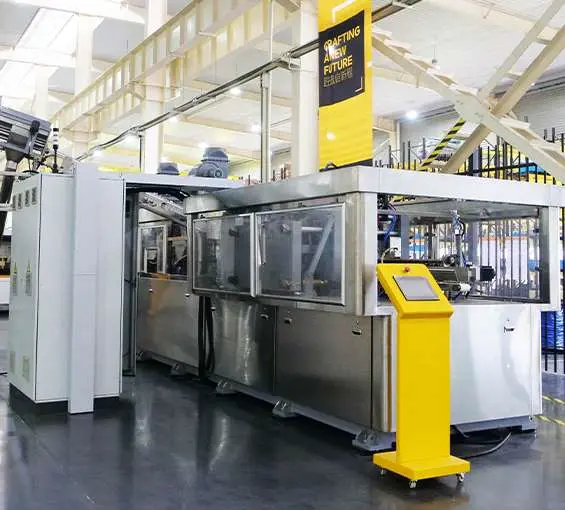

Máy thổi chai PP SFL-PP

  • ● Material: PP
  • ● 6,10,12,16 cavities, 4500-18000bph,max.0.5L PP bottle
  • ● High production
  • ● Low energy consumption
  • ● Quality bottle
  • ● High production
  •  1. Linear two servo motors and double hinges replace the original tie bar clamping,which brings simpler structure,smaller size and less weight and make the machine run smoother,reduce shock and improve speed .
  • 2.  New design of steel ball torque limiter efficiently protect the related parts of blowing machine and automatically find the position of itself which reduces the defficulty of maintenance so that mantainer could slove fault easier .
  • ● Low energy consumption
  • 1. Without enlarging the blowing machine size ,the heating system is consist of stereoscopic and reduce unit energy consumption.
  • 2. With a closed type dust-proof air inlet hood and an independently air filter inlet system on the equipment, is good for compensating the exhausting air so no need collect air from purification work shop thereby saving energy consumption . The exhaust system in the blowing machine adopts the independent control ,which does not affect the environment of the workshop and has a higher degree of cleanliness. It minimizes the external pollution to the blower .( high efficiency filtration and purification system FFU,fan ,wind pipe are provided by users).
  • ● Quality bottle
  • 1. Adopting integrated technology of blowing-welding as one ,the structure is more simple and reliable.
  • 2. Getting rid of particles powerfully at the same time loading performs and welding rings by using a high-preformance static eliminator .

SFLPP Series Unit SFL6/PP SFL10/PP SFL12/PP SFL16/PP
Productivity(300-500ML) Bph 4500-9000 8000-11000 9000-13000 13000-18000
Container volume L 1.5 0.5 0.5 0.5
Max neck diameter MM 38 38 38 38
Max bottle diameter MM 85 86 86 70
Max bottle height MM 300 225 225 200
Cavity PCS 6 10 12 16
Max heating power KW 216 196 252 280
Installation power KW 250 250 302 295
Blowing pressure Mpa 20-30 18-20 18-20 18-20
High pressure consuming L/min 8000 3800 4500 5000
Main machine size M 9.5*2.2*2.75 12*5*3.8 12.96*5.5*3.85 10.6*5.6*3.95
Machine weight T 12 18.6 20 22
SFLPP Series Unit SFL6/PP SFL10/PP SFL12/PP SFL16/PP
Productivity(300-500ML) Bph 4500-9000 8000-11000 9000-13000 13000-18000
Container volume L 1.5 0.5 0.5 0.5
Max neck diameter MM 38 38 38 38
Max bottle diameter MM 85 86 86 70
Max bottle height MM 300 225 225 200
Cavity PCS 6 10 12 16
Max heating power KW 216 196 252 280
Installation power KW 250 250 302 295
Blowing pressure Mpa 20-30 18-20 18-20 18-20
High pressure consuming L/min 8000 3800 4500 5000
Main machine size M 9.5*2.2*2.75 12*5*3.8 12.96*5.5*3.85 10.6*5.6*3.95
Machine weight T 12 18.6 20 22

* Demark có quyền thay đổi sản phẩm và thông số kỹ thuật có thể thay đổi mà không cần báo trước.
